3D laser scanning captures the visible shape of an existing building efficiently. It helps most when the building is complex, or when the plans, elevations and sections all need to come from the same survey. We offer 3D laser scanning and point cloud drawing services for suitable homes and commercial buildings across Dorset.

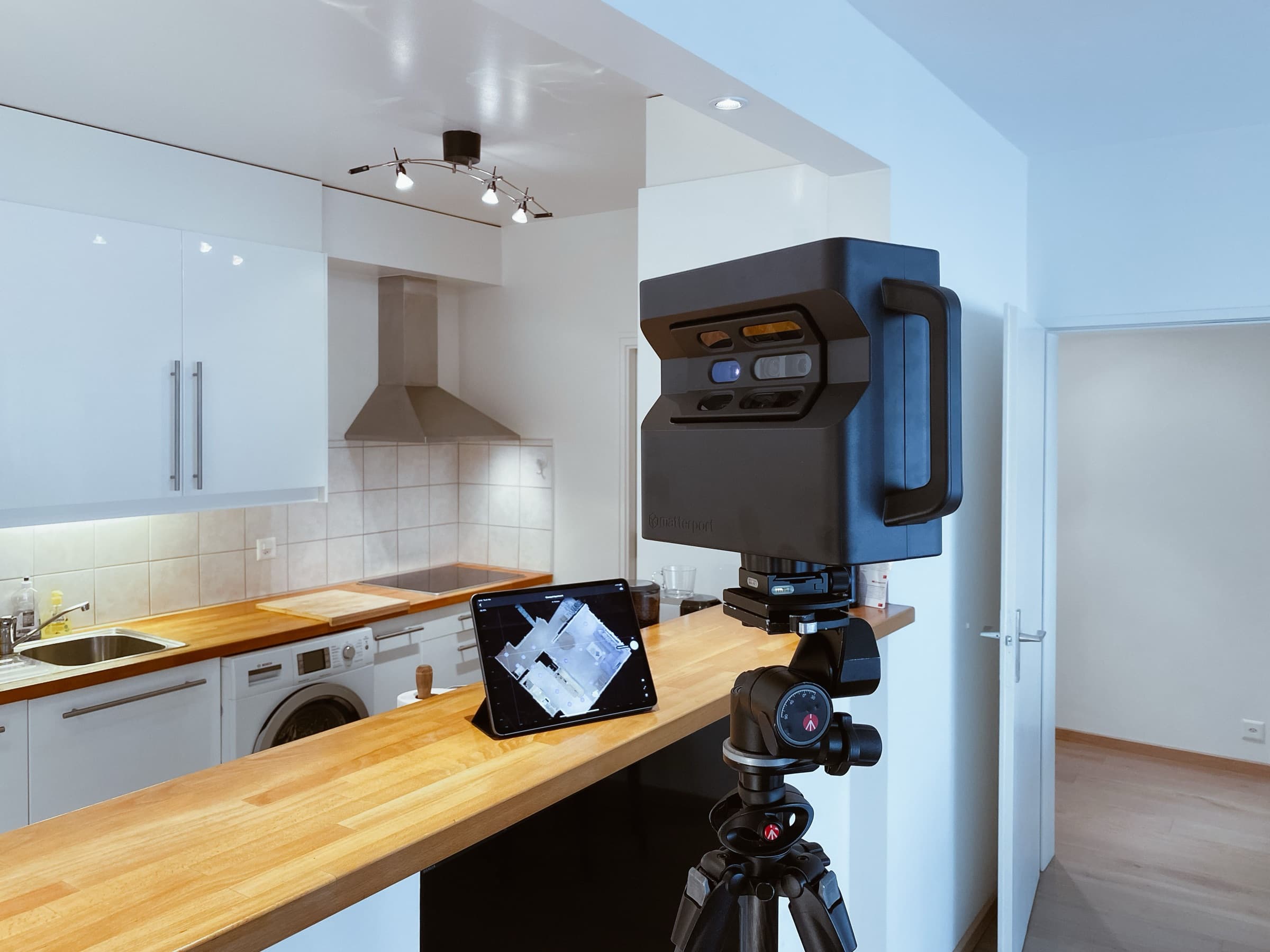

Instead of taking measurements one at a time with a tape or laser measure, a scanner records a dense set of points from several positions around the building.
Once we register the scans together, the resulting point cloud becomes the reference we draw the CAD plans, elevations and sections from.
Scanning suits irregular buildings, refurbishments, properties with several levels or elevations, and jobs where going back to site for a missed dimension would be awkward. It also leaves you with a digital record of the building's visible condition on the day of the survey.
More data doesn't automatically mean better drawings. We still plan the survey around the drawings you need, so the right areas are visible and the point cloud suits the job.
Point cloud files can be large, and awkward to use if you only need plans and elevations. Where it suits you, we process the scan data and use it to prepare the CAD drawings directly.
We can also supply the raw or processed point cloud in an agreed format where it's in the quote. If you plan to use the data yourself, check your software can open it before we start.
From the first conversation to your finished drawings and data.
Tell us about the building and the drawings you need. We confirm whether scanning suits the job and send a fixed-price quote.
We scan the building from the positions the drawings need, so the areas that matter are visible.
We register the scans into one point cloud and draw the CAD plans, elevations and sections from it.
You get the drawings, plus the point cloud in an agreed format if it's part of the quote.
A scanner records the surfaces it can see from each scan position. It doesn't see through walls or show hidden construction. Registration quality, site conditions, range and the equipment all affect the result. For measured drawings, the accuracy should suit the purpose. Where dimensions are critical for fabrication, structural installation or other high-tolerance work, have them checked independently or agree a specialist survey specification first.
Both give you CAD drawings of the existing building. Scanning suits complex buildings and jobs where the plans, elevations and sections all need to come from one survey. We'll advise which approach is proportionate to the drawings you need.
