A good extension does more than add floor space. It makes the whole house work better. We design and draw extensions for homeowners across Bournemouth, Poole, Christchurch and Dorset, from the first measured survey through planning drawings to Building Regulations.
We draw single-storey rear extensions for bigger kitchens and family rooms, side and wraparound extensions, and two-storey extensions that add bedrooms or bathrooms.
The design starts with the house you have: how you move through it, where the openings go, the proportions of each room and how the extension meets the garden. Planning shapes it too. Scale, height, materials, boundaries and the effect on neighbours all affect what the council is likely to accept.
Most extension projects start with a measured survey, which gives us the existing floor plans and elevations. Proposed plans and elevations then show the new layout and how the house will look. Depending on the scheme, you may also need roof plans, sections and a site plan.
For Building Regulations the drawings get more technical and add construction information. A structural engineer usually designs the structural openings and beams, and we coordinate their details with our drawings.
From the first conversation to the council's decision.
Tell us about the property and what you want to do. We confirm which drawings you need and send a fixed-price quote.
We visit and measure the parts of the property the drawings need to show.
We draw the existing building, then develop the proposed design with you until you are happy with it.
If we act as your agent, we submit the application and answer the council's drawing queries while it is decided.

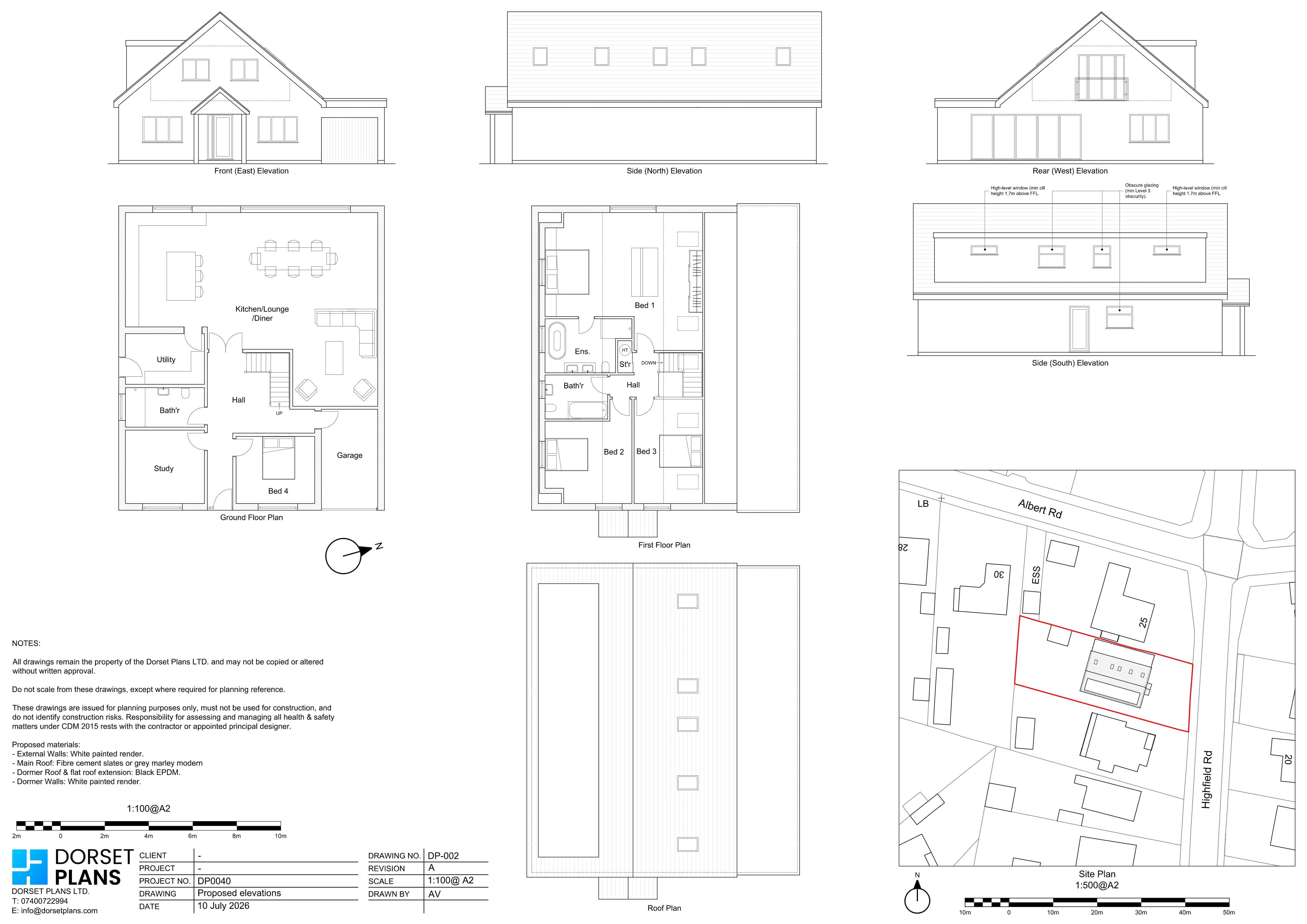

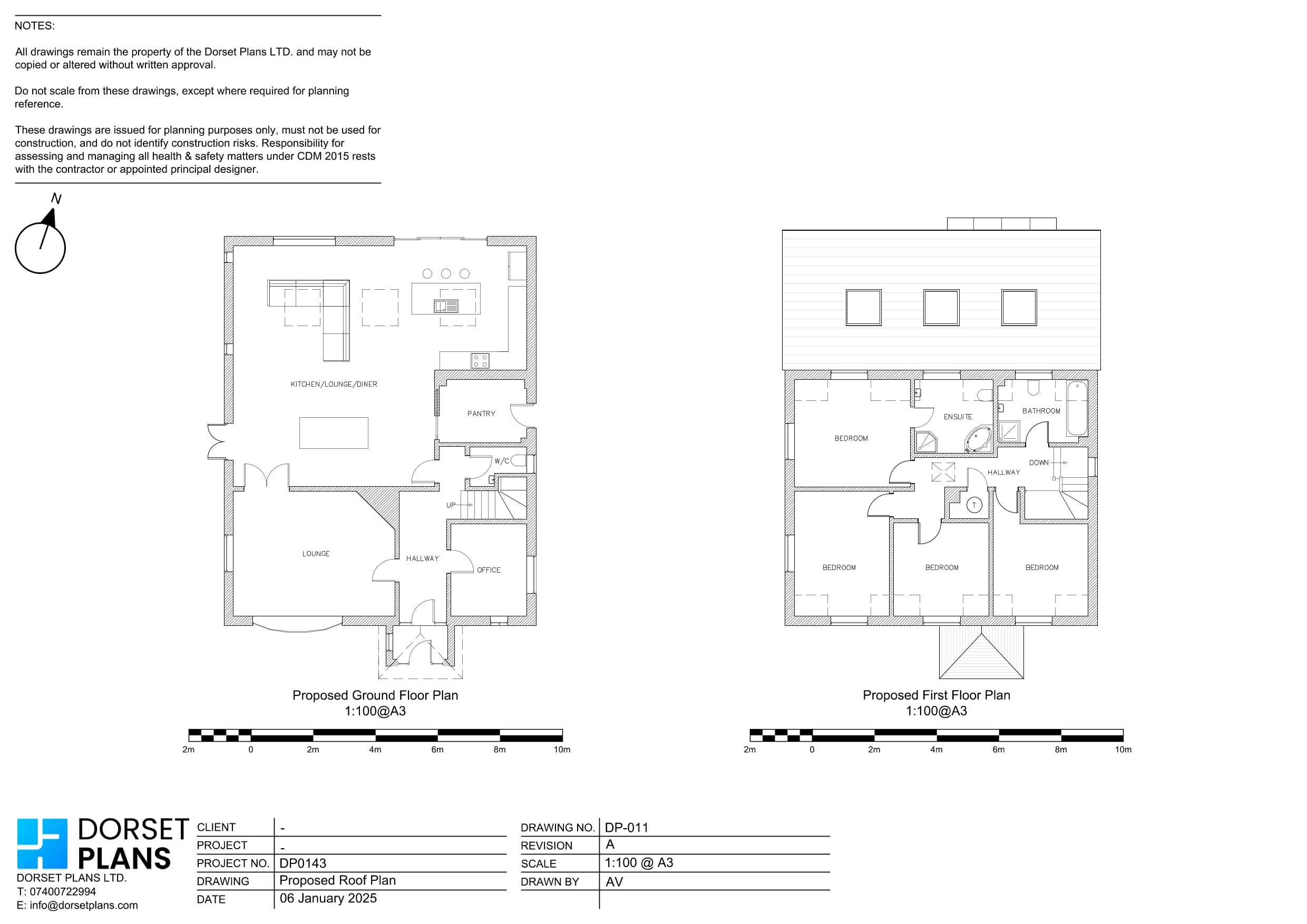

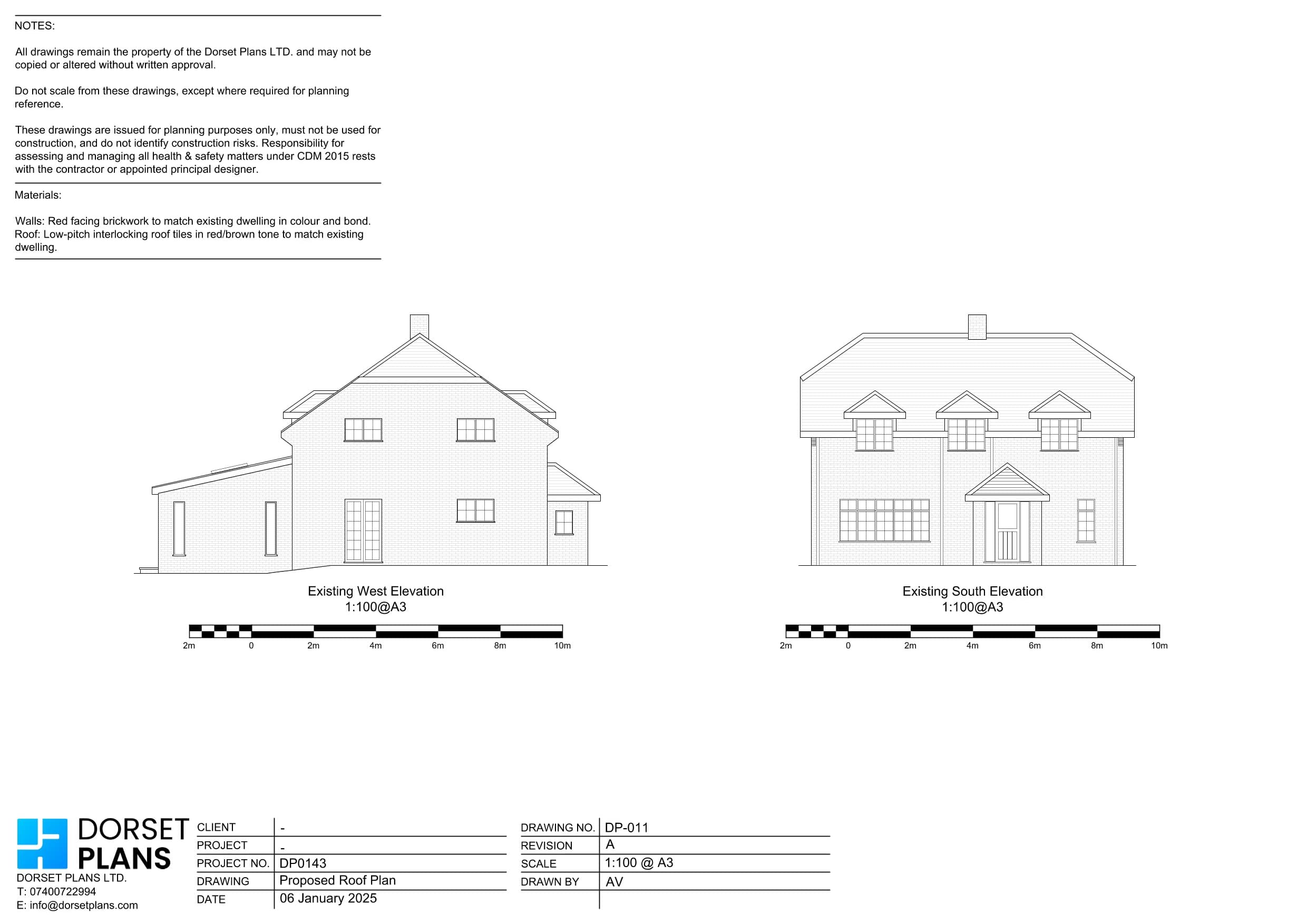

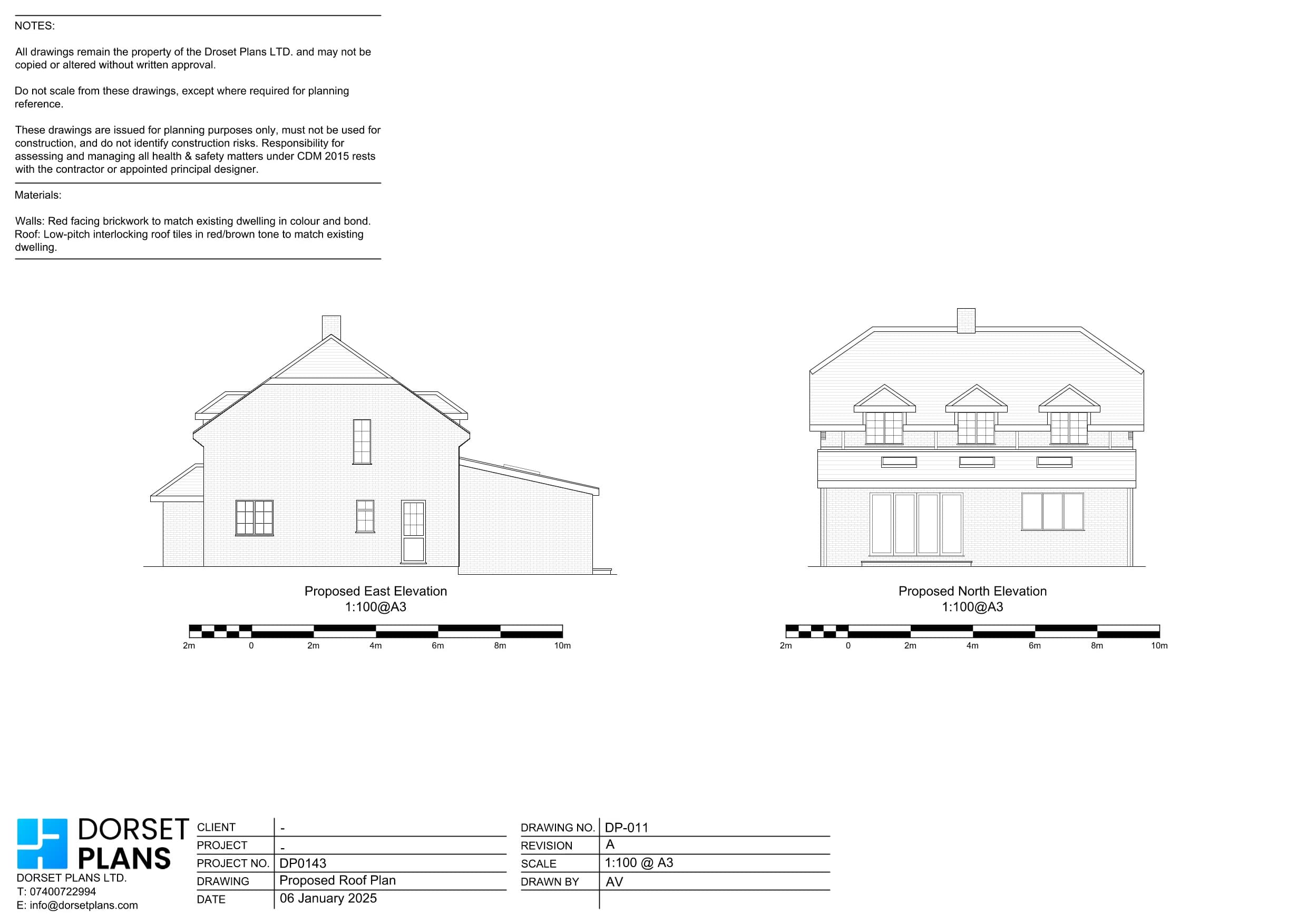

A selection of drawings from recent projects.
Some extensions can go ahead under permitted development, as long as the house and the design meet its limits and conditions. Others need a householder planning application, so establish the right route before work starts. If your extension looks like permitted development and you want it confirmed formally, apply for a Lawful Development Certificate. You may still need Building Regulations approval when you don't need planning permission.
We combine design engineering knowledge with hands-on building experience, so our drawings are clear and buildable. When your project needs structural, energy, drainage, heritage, ecology or other specialist advice, we tell you, so you can appoint the right consultant.
